Product description

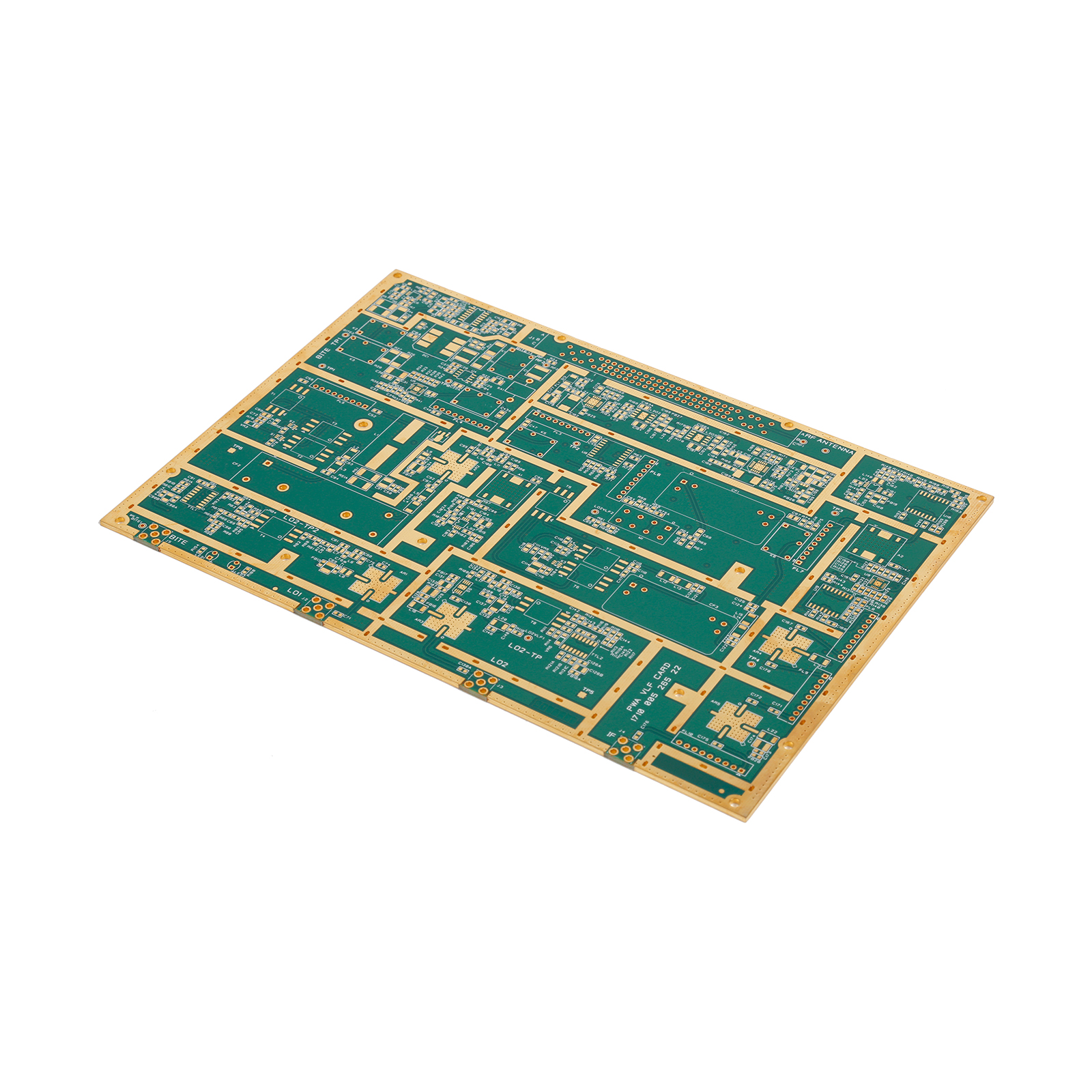

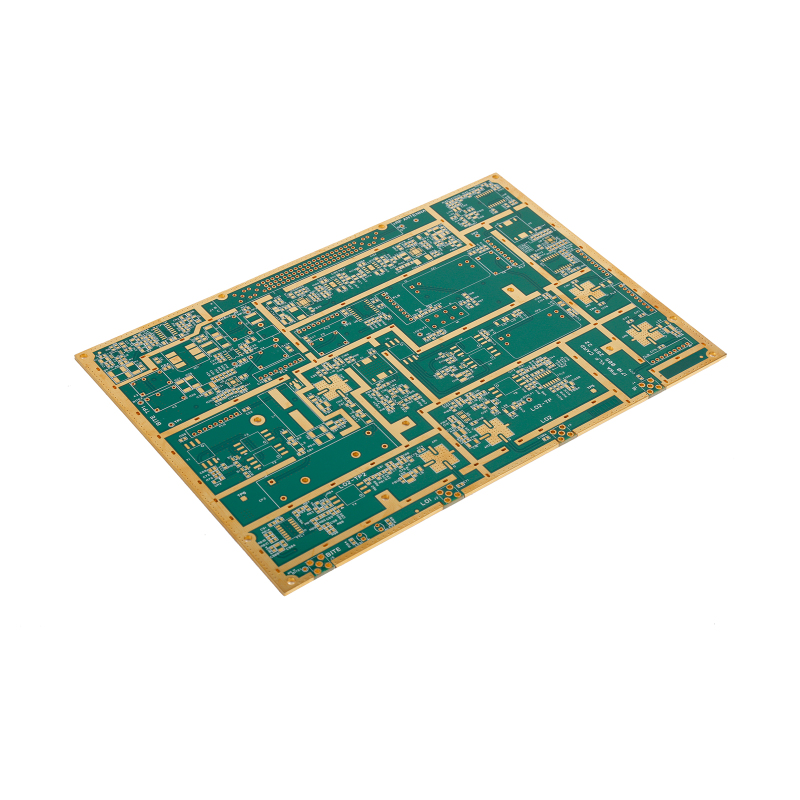

Dickson Circuit specialized in manufacture rogers circuit board. roger pcb is a type of high-frequency board that raw material is produced by company brand Rogers.
rogers circuit board is more difficult to produce than common FR4 material pcb.
Rogers 4350b is a popular rogers pcb material. Rogers 4350b are proprietary woven glass reinforced hydrocarbon/ceramics with electrical performance close to PTFE/woven glass
and the manufacturability of epoxy/ glass.
Rogers 4350b has tight control of dielectric constant (Dk 3.48 +/- 0.05).
rogers pcb material 4350b maintain low loss while utilizing the same processing method as standard epoxy/glass.Available at a fraction of the cost of conventional microwave laminates.
rogers 4350b laminates do not require the special through-hole treatments or handling procedures as PTFE based materials.
These materials are UL 94 V-0 rated for active devices and high power RF designs.
FEATURES AND BENEFITS of Rogers 4350b:
Rogers 4350b materials are reinforced hydrocarbon/ceramic laminates - not PTFE
• Designed for performance sensitive, high volume applications Low dielectric tolerance and low loss
• Excellent electrical performance
• Allows applications with higher operating frequencies
• Ideal for broadband applications Stable electrical properties vs. frequency
• Controlled impedance transmission lines
• Repeatable design of filters Low thermal coefficient of dielectric constant
• Excellent dimensional stability Low Z-axis expansion
• Reliable plated through holes Low in-plane expansion coefficient
• Remains stable over an entire range of circuit processing temperatures Volume manufacturing process
• Rogers 4350b laminates can be fabricated using standard glass epoxy processes • Competitively priced CAF resistant.
TYPICAL APPLICATIONS of Rogers 4350b :
• Cellular Base Station Antennas and Power Amplifiers
• RF Identification Tags
• Automotive Radar and Sensors
• LNB’s for Direct Broadcast Satellites
• Backhaul Radios
• Communications Systems
• IP Infrastructure
• Power Amplifiers
• Small Cells / DAS
• Test & Measurement
• Computing
