Rogers RO4533 laminate belongs to the 4500 series. Rogers RO4533 is a ceramic filled laminate reinforced with glass hydrocarbon based materials, which can provide the controlled dielectric constant, low loss performance, and excellent passive intermodulation response required for mobile infrastructure microstrip antenna applications.
RogersRO4533 is a cost/performance material from Rogers, specifically designed and manufactured to meet the specific needs of the antenna market.

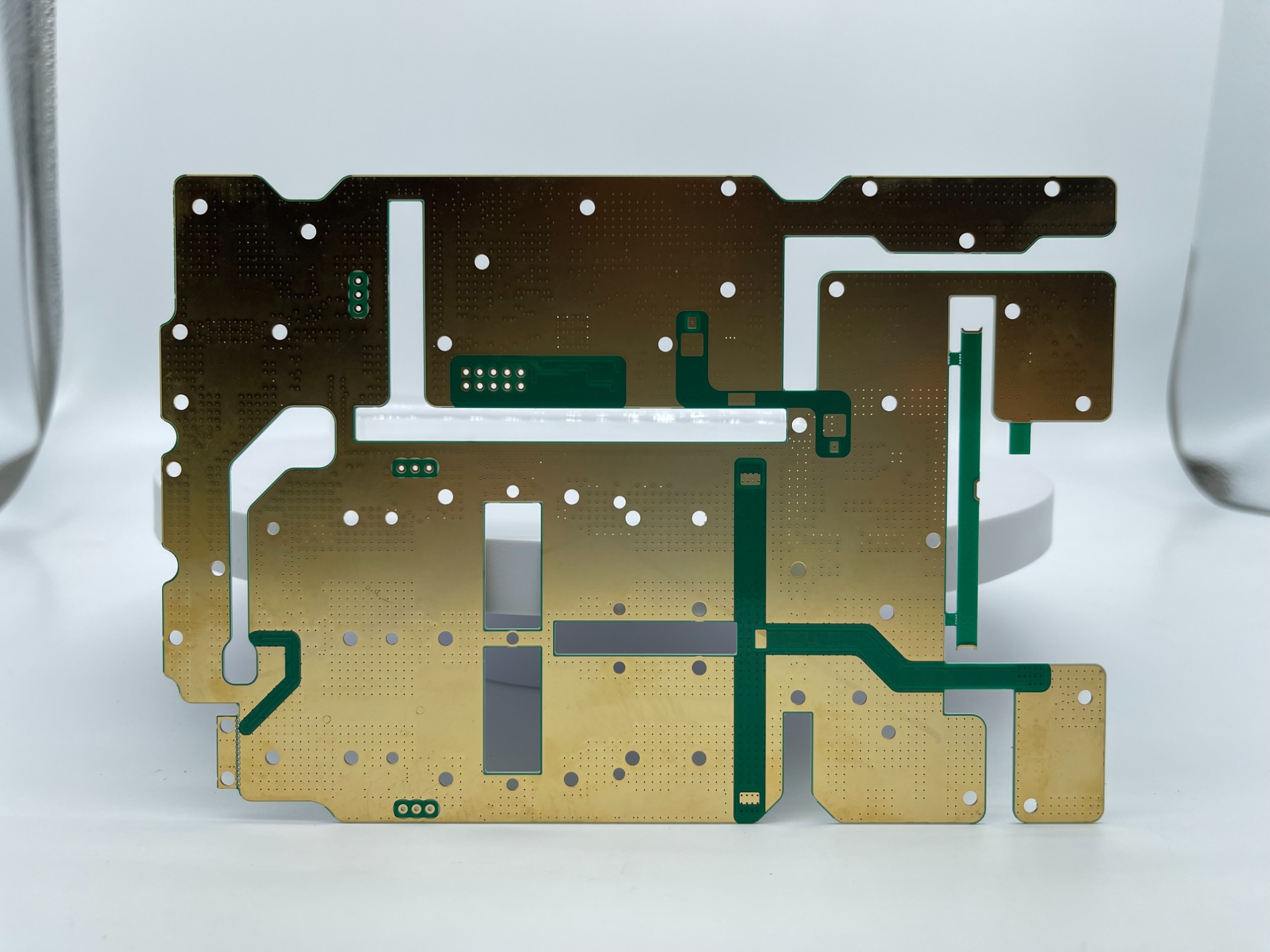

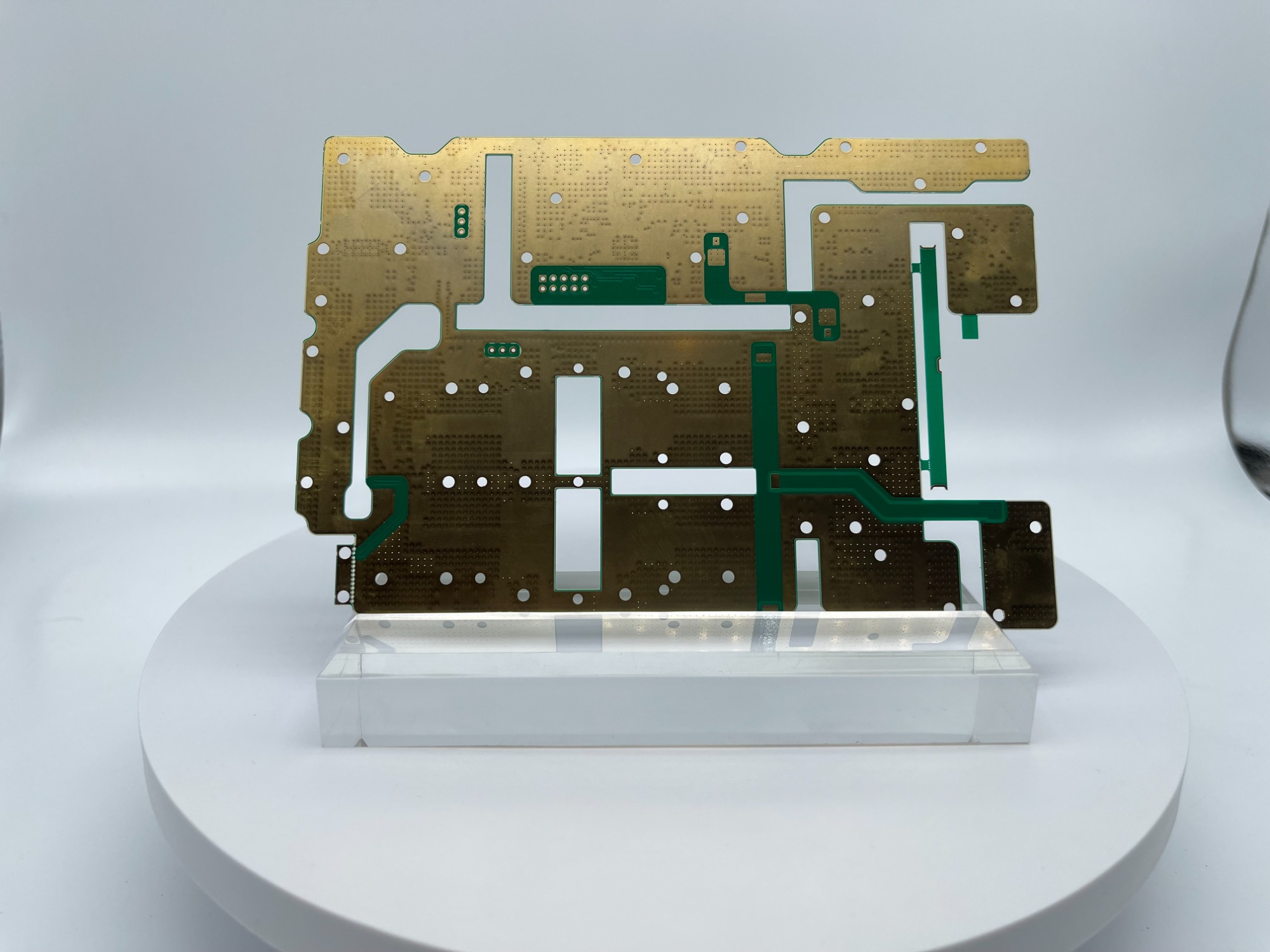

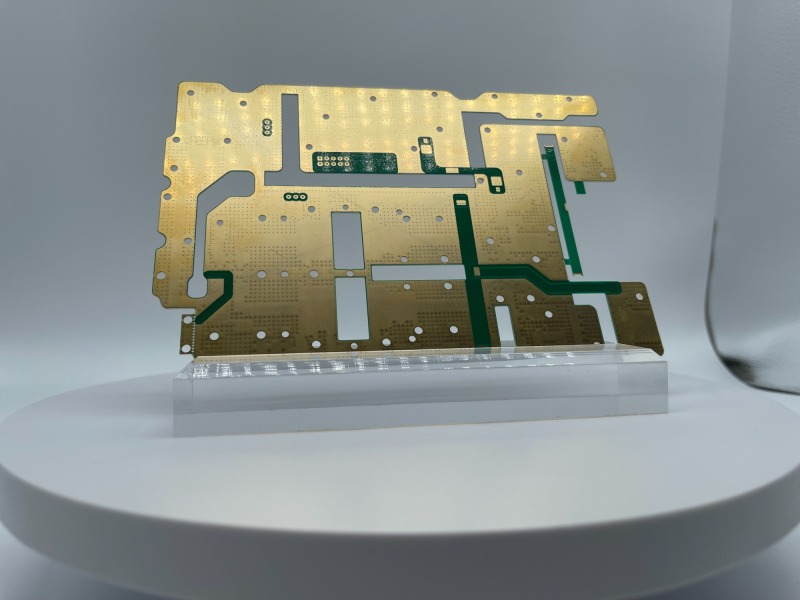

Rogers RO4533 adopts a 60mil (1.524mm) core, with a surface plated with 1oz copper and no solder mask layer on both sides. The top and bottom layers are covered with gold and have through holes.
In order to meet the requirements of antenna designers, the high-speed and high-performance applications of Rogers RO4533 laminates are exactly what these strict designers need. RO4533 has another major advantage, which is its dielectric properties and thickness tolerance.
Why are RO4533 laminates very suitable for the application of microstrip antennas? Because they have low loss performance and controllable dielectric constant. RO4533 also provides passive intermodulation response, which greatly meets the requirements of the antenna industry. RO4533 laminate is compatible with lead-free solder processing.
| RO4533 Parameter | Numerical value |
| Board materal | RO4533 |
| Board type | double side PCB |
| Number of Layers | 2 Layers |
| Board thickness | 1.6mm |
| Suface/Inner Layer CU thickness | 1oz |
| Surface finish | immersion gold |
| Function | 100% pass electrical test |
| Minimum trace and space | 10 mil / 10mil |
| Minimum/Maximum Holes | 0.3mm / 4.0mm |
| VIA | Plated through hole(PTH),minimum size 0.3mm |
| Servcie area | Around the world |
Dickson Circuit Co.,Ltd has a 17 year history of producing PCB.
We cooperates with many well-known companies such as Samsung, Osram, Philips, and China Southern Power Grid.
The quality is guaranteed and the price is very affordable.
Just give me a Gerber file, and I will definitely give you a satisfactory product.
If you are interested, please feel free to contact me at any time.
