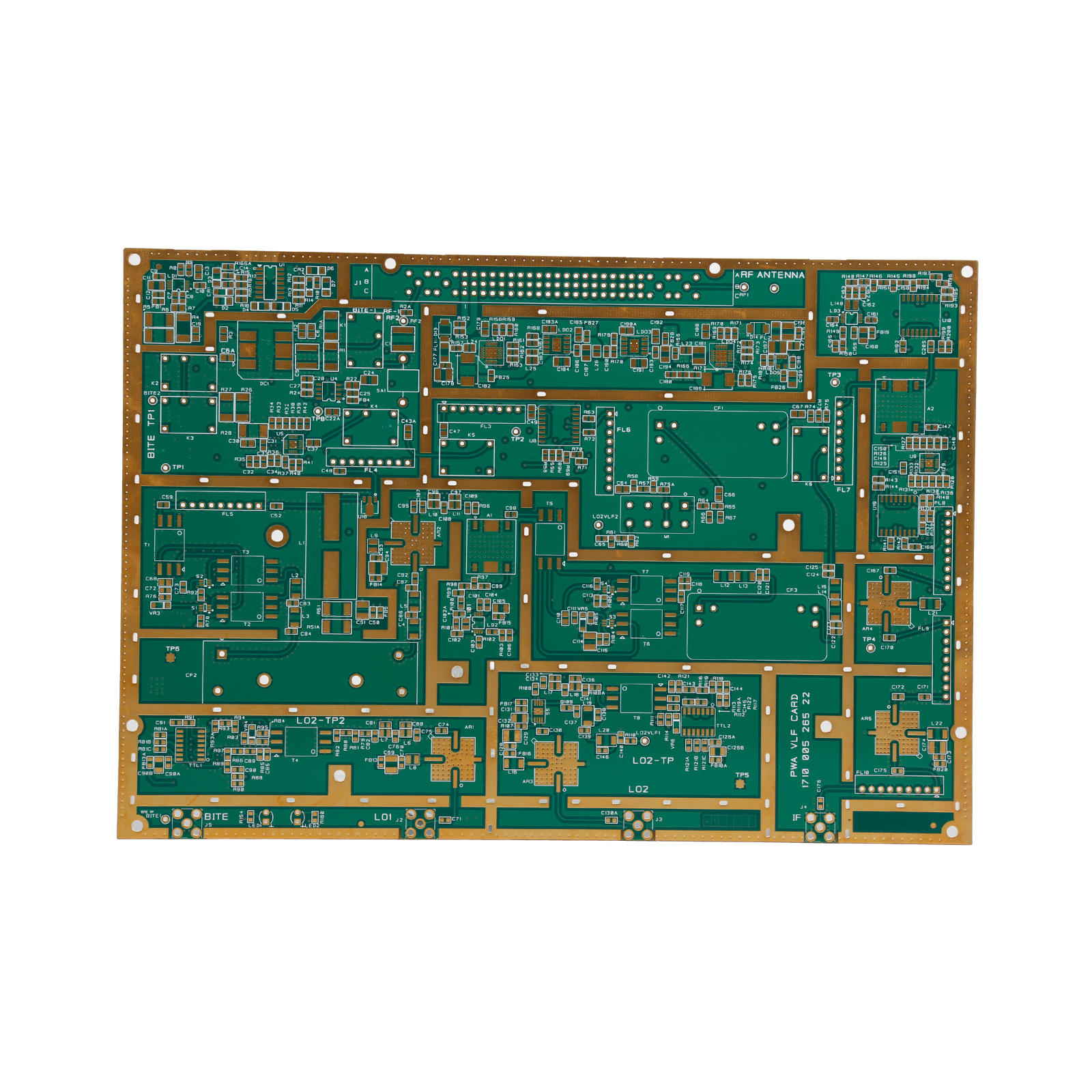

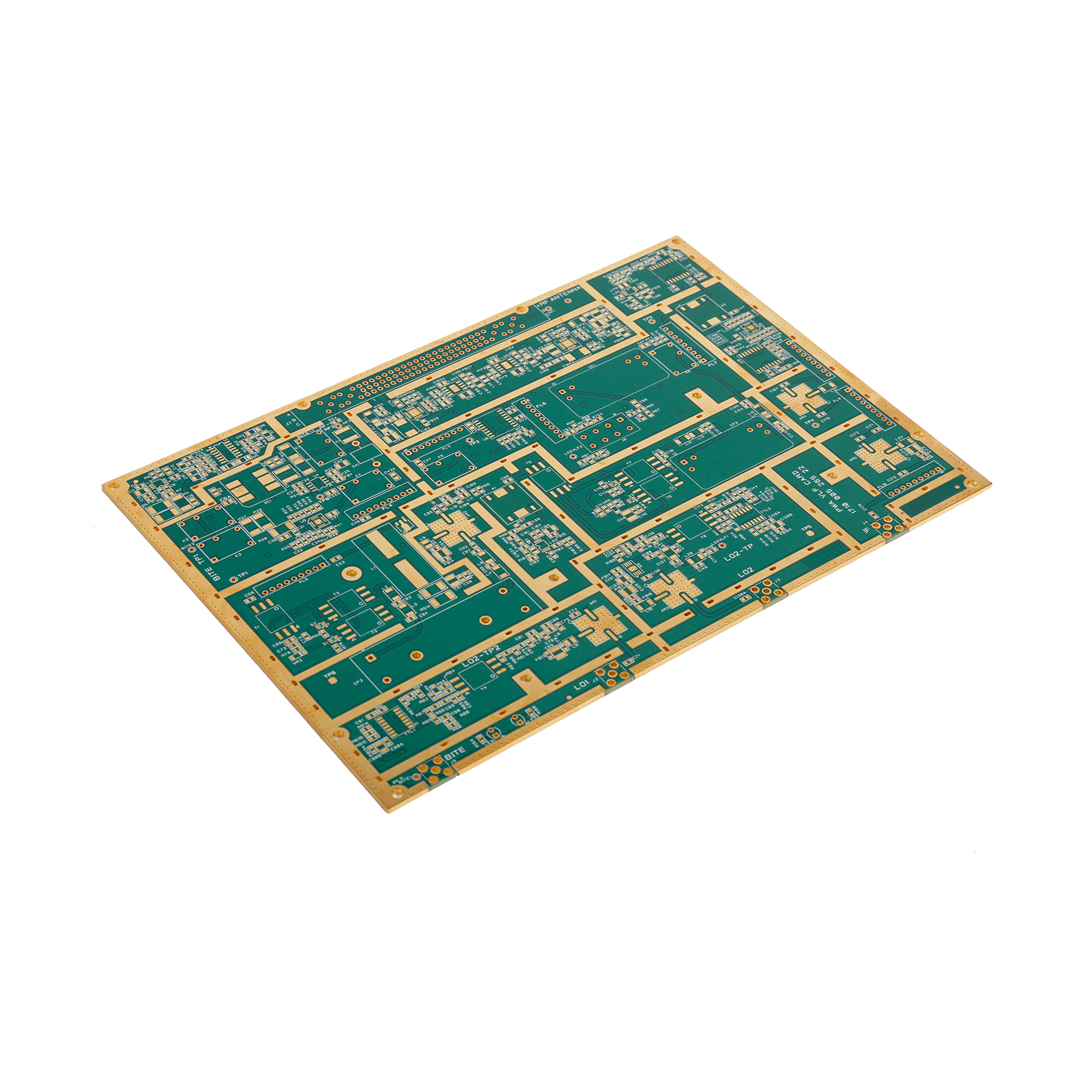

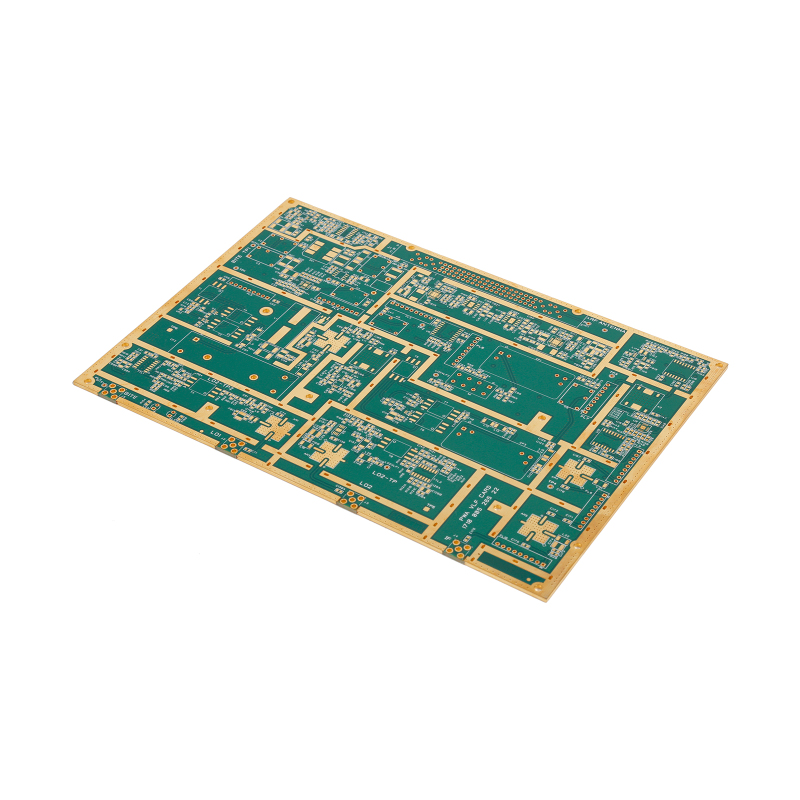

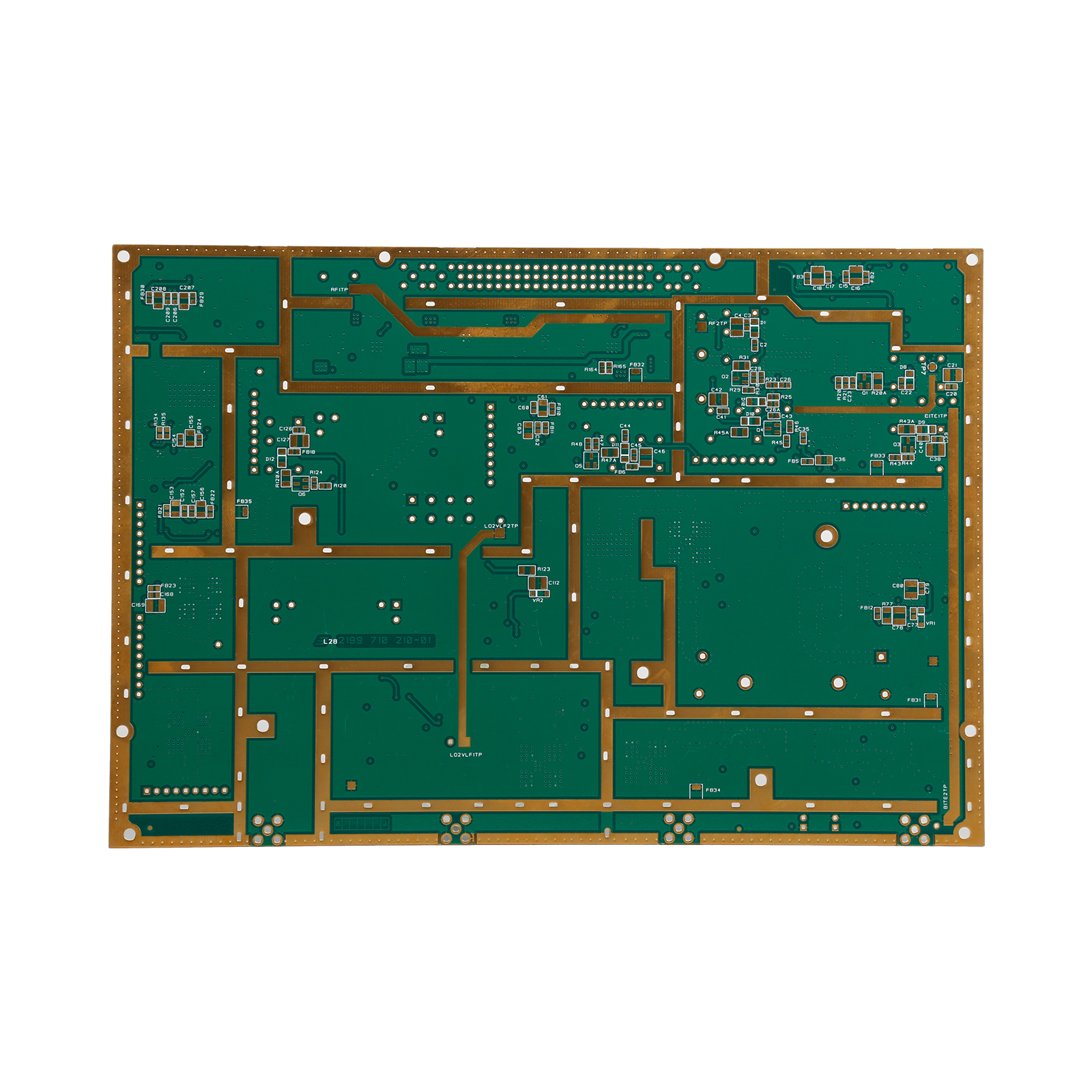

High frequency pcb rogers circuit board Rogers 5880 pcb rogers dielectric materials Dk2.2

Rogers 5880 Antenna PCB Fabrication, Embedded cavity Rogers 5880 PCB, Ro5880 Cavity PCB Manufacturer in China. RT5880 PCB Materials Features: Dk is 2.20 +/- .02. Dissipation factor of .0009 at 10GHz.Low moisture absorption. RT/duroid 5880 laminates has a low dielectric constant (Dk) and low dielectric loss, making them well suited for high frequency/broadband applications. Helping to maintain the Dk uniformity are the randomly oriented microfibers reinforcing the PTFE composites.

Rogers RT/duroid 5880 laminate can be bonded using either fusion bonding or adhesive bonding techniques to manufacture multilayer boards.Multiple layers of RT/duroid 5880 material can be fused together into a monolithic structure without adhesives under heat and pressure. This creates a void-free interface for optimum electrical and mechanical performance.RT/duroid 5880 layers can also be bonded using Rogers’ own RO4000 or RO3000 series bondply adhesives. Thermoset polyimide or epoxy films like FR-4 can also be used.

Features

· Dk or 2.20 +/- .02

· Dissipation factor of .0009 at 10GHz

· Low moisture absorption

· Isotropic

Benefits

· Uniform electrical properties over wide frequency range

· Easily cut, shared and machined to shape

· Resistant to solvents and reagents used in etching or plating edges and holes

· Ideal for high moisture environments

· Well-established material

· Lowest electrical loss for reinforced PTFE material
